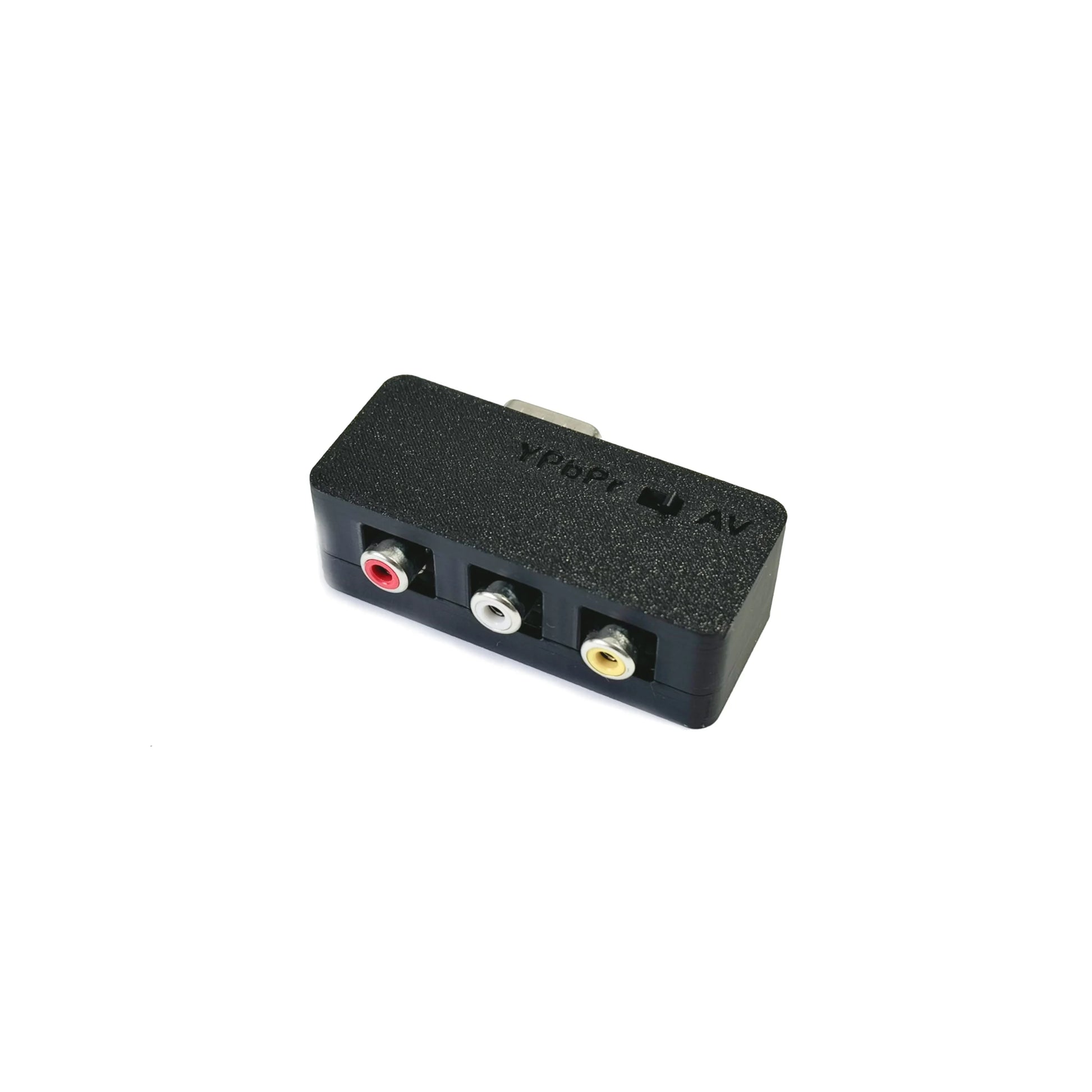

VGA to Component / Composite (YPbPr)

Configuration Mister.ini:

• vga_mode=ypbpr ; supported modes: rgb, ypbpr, svideo, cvbs. rgb is default.
• ;ypbpr=0 ; set to 1 for YPbPr on VGA output. (obsolete. see vga_mode)

• YPbPr is commonly referred to as component video by manufacturers. YPbPr is a color space used in video electronics, in particular in reference to component video cables. YPbPr is gamma corrected YCbCr color space (it is not analog YUV that was used for analog TV, though component video is an analog interface); the two are numerically equivalent but YPbPr is designed for use in analog systems while YCbCr is intended for digital video. The EOTF (gamma correction) may be different from common sRGB EOTF and BT.1886 EOTF. Sync is carried on the Y channel and is a bi-level sync signal, however, in HD formats a tri-level sync is used and is typically carried on all channels.

• Composite video is an analog video format. A yellow RCA connector is typically used for composite video. Composite video is also referred to as SD video for the standard-definition television signal it conveys.
