Passive Y/C MikeS11 S-Video (Direct Video Compatible)

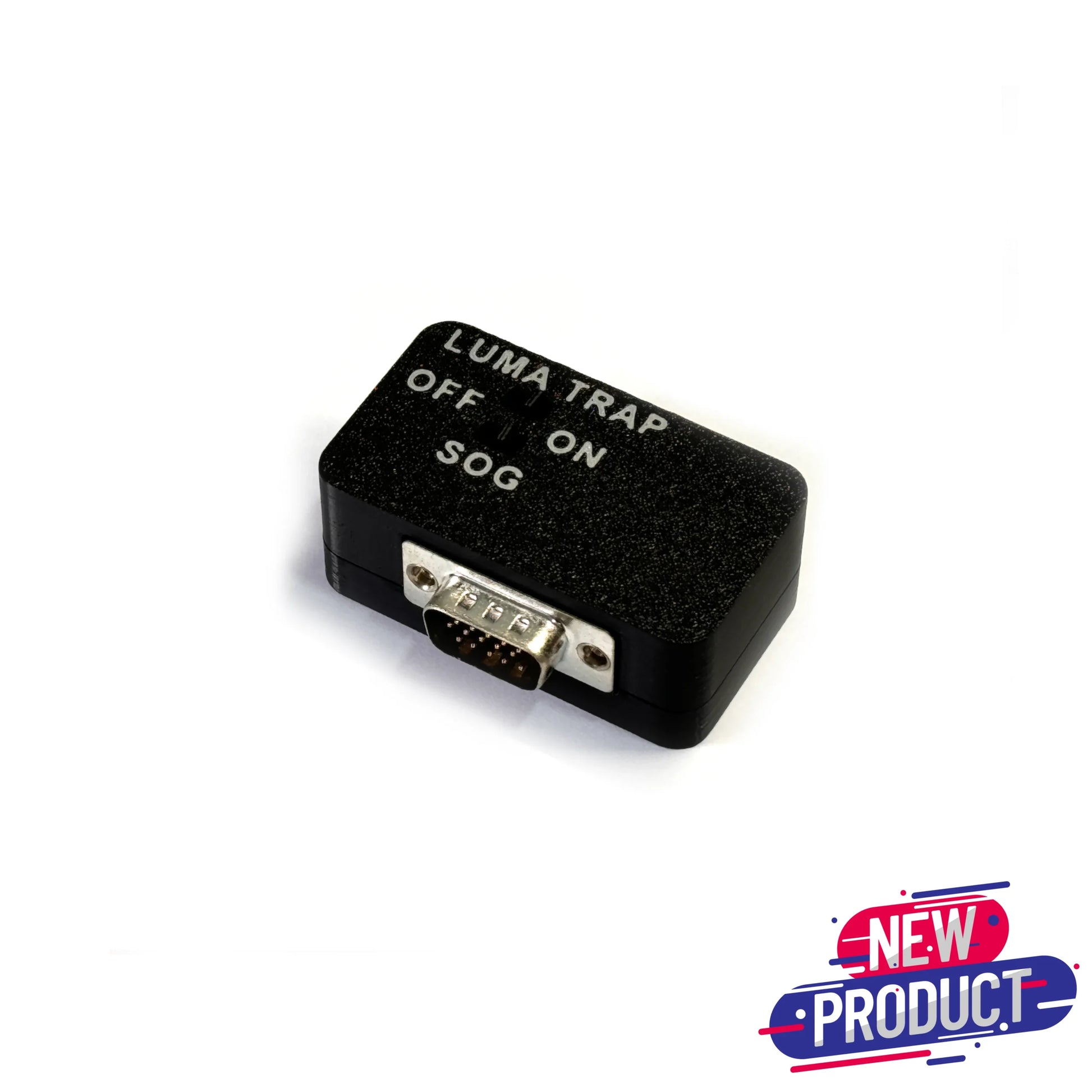

Y/C Passive MikeS11 Adapter with luma trap it’s a video adapter that allows the connection of your MiSTer to a CRT TV or a modern TV with S-Video input.

Compatible with DirectVideo.

Configuration requirements:

Enable in MiSTer ini:

• forced_scandoubler=0
• vga_mode=svideo
• composite_sync=1
• vga_scaler=0
• direct_video=0*
• *this option must be =1 if you use HDMI to VGA DAC

On I/O board, Sync on Green SOG – OFF (set on the switch of the adapter itself);

Compatible with:

• Analog I/O 6.1 or A/V Pro 9.2;
• MiSTer HDMI with DirectVideo adapter;
• MiSTer MultiSystem;
• JAMMIX I/O;
• Extreme MiSTer XM-PRO.

Credits to MikeS11
