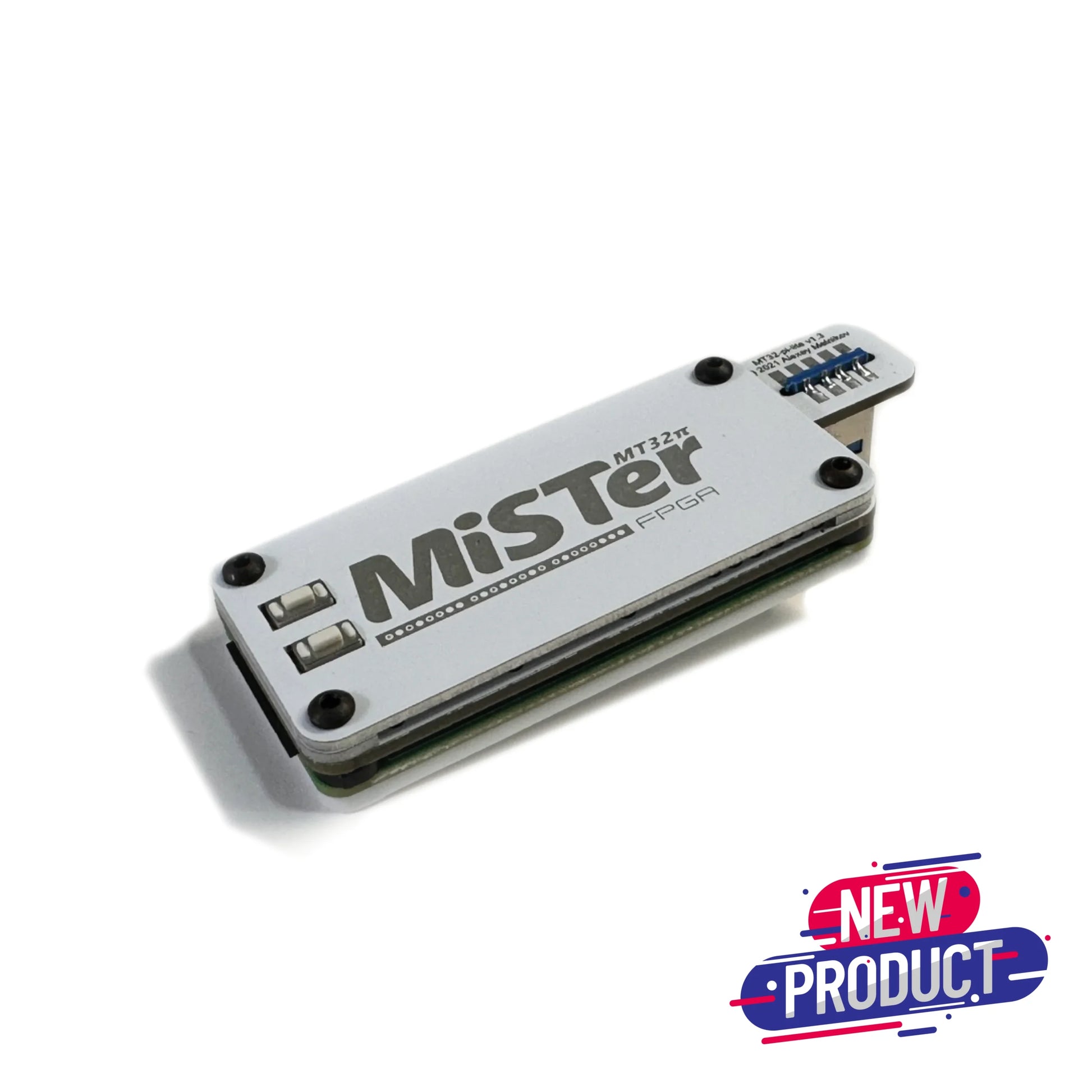

MT32-Pi Lite rev.2 WHITE (RPi Zero 2W)

Ultra-compact  MT32-Pi MIDI add-on built with RPi Zero 2W, SYNTH and ROM soft-touch buttons.

Mounts securely on the side of Classic Official MiSTer or BlisSTer — no cables needed, for a clean and stable connection.

MT32-Pi Lite for MiSTer FPGA. Compact and reliable MIDI solution for ao486, Amiga, X68000, Atari ST, and more.

 Now with aluminum PCB heatsink, scratch protection, and thermal pad for improved cooling and performance.

 Includes pre-configured SD card with free SoundFonts

 Roland MT-32 ROMs not included

 More info & updates: github.com/dwhinham/mt32-pi

 Technical Highlights:

• A work-in-progress bare-metal MIDI synthesizer developed by d0pefish for the Raspberry Pi, based on Munt, FluidSynth and Circle.
• Turn your Raspberry Pi into a dedicated emulation of the famous multi-timbre sound module used by countless classic MS-DOS, PC-98 and Sharp X68000 games!
• Add your favorite SoundFonts to expand your synthesizer with General MIDI, Roland GS, or even Yamaha XG support for endless MIDI possibilities.
• Includes General MIDI and Roland GS support out of the box thanks to GeneralUser GS by S. Christian Collins.
• No operating system and no complex Linux audio configuration; just super-low latency audio.
• Easy to configure and ready to play from cold-boot in a matter of seconds.
• The perfect companion for your MiSTer FPGA setup.
• Requires a MiSTer FPGA board with full serial pinout: Analog I/O v6.1, Digital I/O v1.2, or AV Pro (latest revisions).
