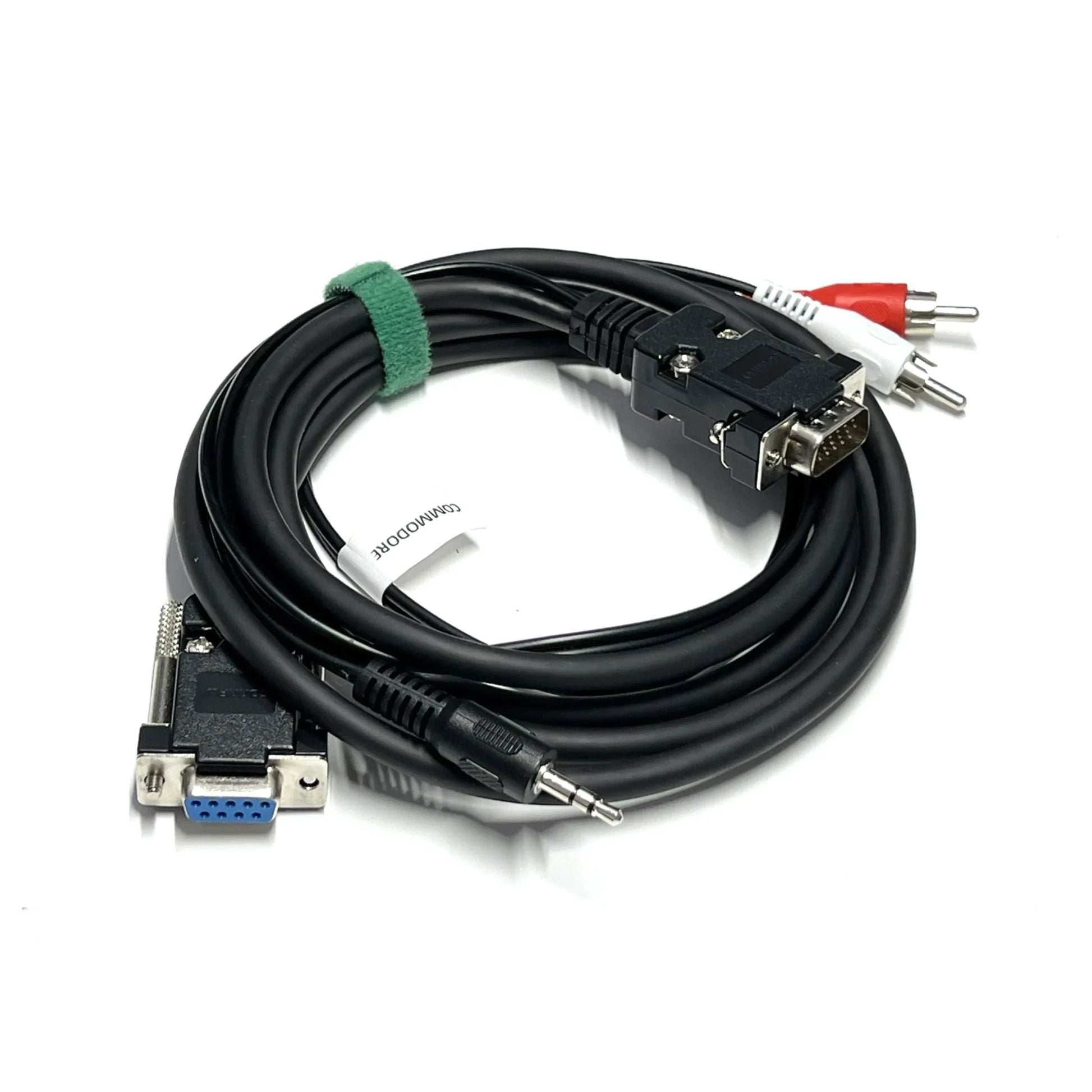

MiSTer VGA to Commodore 1080 Cable

Connect Your MiSTer FPGA to a Classic Commodore 1080 Monitor

Experience authentic retro visuals by connecting your MiSTer FPGA to a 15 kHz Commodore 1084S CRT monitor. This cable is built using high-quality shielded wiring, ensuring clean video signals and optimal performance.

 Important:

This SCART cable is specifically designed for use with MiSTer FPGA systems.

We do not recommend using it with other hardware. If you choose to do so, please proceed at your own risk.

Connect your MiSTer FPGA to a classic 15khz Commodore 1080 monitors for a complete retro experience. Made with high quality shielded cable and optimized to work with the MiSTer FPGA.

This SCART cable is specific for MiSTer, we do not recommend using it on other systems (if you do, do it at your own risk).

If you need a cable with a different connection, contact us first.

To avoid any issue we recommend that you back up first your mister.ini file and put a new one with a new configuration.

Specification:

• Connector A: 15 Pin D-sub (MiSTer)
• Connector B: 9 pin D Sub Female ((C= 1080 video output)
• Connector C: 2 x Stereo RCA
• Cable Length: 1,6mt
• Color: Black

MiSTer.ini config:

• composite_sync = 1
• forced_scandoubler = 0
• vga_scaler=0

Scandoubler config setting in menu (F12) OFF in all cores
