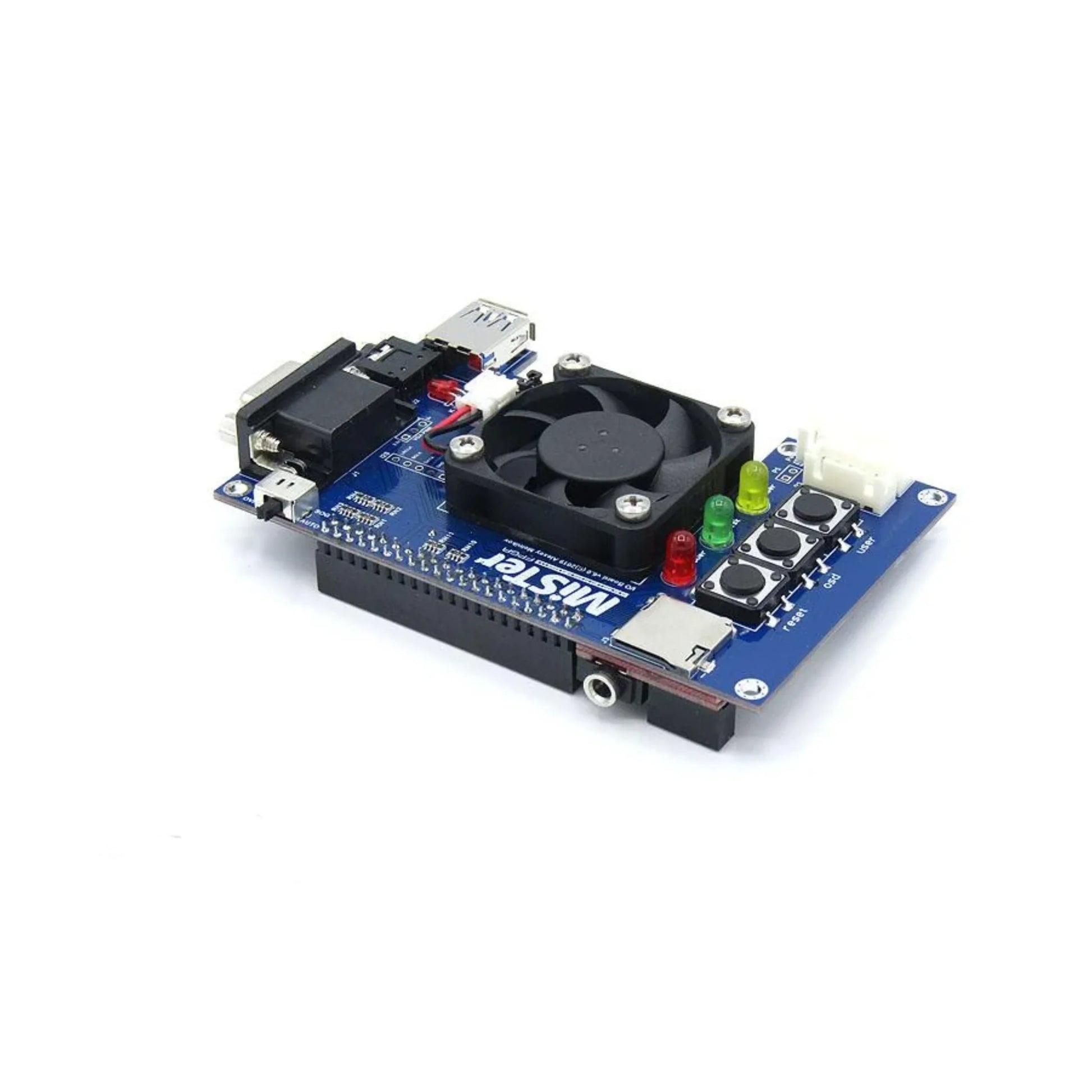

MiSTer Analog I/O v6.1 ADC Audio Input

Key Features:

• VGA Output

  Compatible with 15 kHz and 31 kHz modes (functionality may vary depending on the core)

• Audio Output

  3.5mm stereo jack with integrated TOSLink digital audio

• ADC Audio/Tape Input

  Additional 3.5mm jack for tape loading and audio input, ideal for retro computers

• User Interface

  3 customizable buttons and 3 status LEDs for core interaction and feedback

• Secondary SD Card Slot

  Supported by selected cores for expanded functionality, like ZX Spectrum Next

• Cooling Options

  Compatible with stock fan or Noctua (includes 3.3V / 5V selector for adjustable speed)

• Expansion Connector

  For integration with external cases or custom enclosures

Official Analog vs Digital I/O Board comparative:
