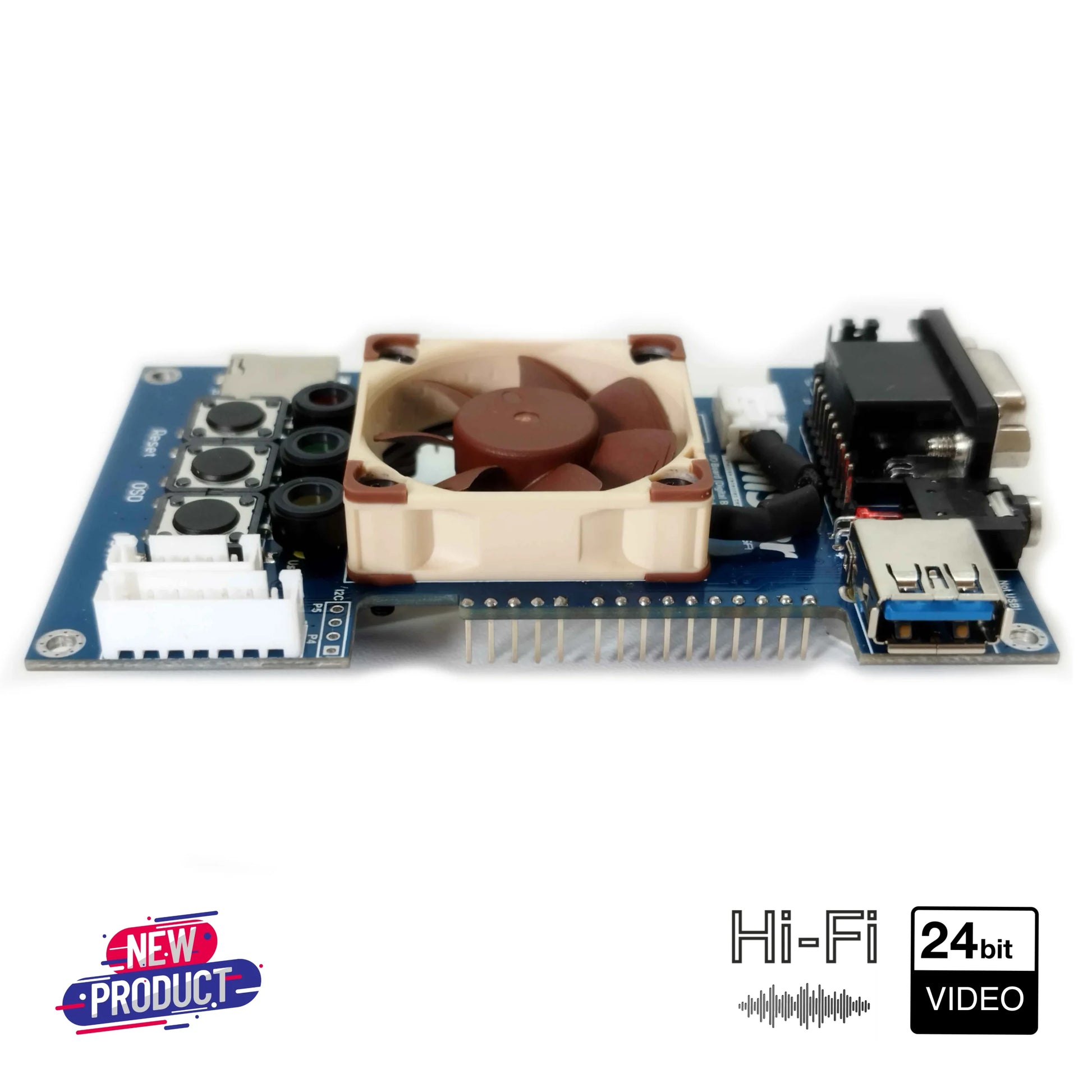

MiSTer A/V Pro v9.2

Defining the I/O standards, the MiSTer A/V Pro v9.2 board sets a new benchmark by replacing both the Analog I/O and Digital I/O boards, unifying their features into one powerful and hybrid solution.

Why Choose a 24-bit Video DAC?

Unlike resistor ladders used in other boards, it uses a true 24-bit Video DAC chip that registers all color data synchronously via clock signals — ensuring richer colors, sharper images, and no video artifacts. It delivers a cleaner, more stable video output that’s especially noticeable on high-quality displays.

Developed in collaboration with the official MiSTer team, it ensures full compatibility with current and future cores — making it the go-to choice for any MiSTer setup.

Important Note – MiSTer A/V Pro v9.2 Configuration

When using the A/V Pro v9.2, all DIP switches on the DE10-Nano should be set to OFF.

The MiSTer framework automatically detects the new A/V module and disables reliance on SW3.

However, SW3 may still be useful in rare cases — specifically when using Dual SDRAM configurations with certain cores. If a core initializes faster than the framework, enabling SW3 can assist in proper A/V module detection.

MiSTer A/V Pro v9.2 – Key Features:

• 24-bit ADV Video DAC with official MiSTer framework integration

• Hi-Fi Analog Audio DAC with crystal-clear stereo output, no pop noise, and improved frequency response

• Hybrid Design: Functions as Digital I/O (for Dual RAM setups) or full Analog I/O with A/V module

• ADC-In v1.3 for audio input, cassette/tape support

• Mini TOSLINK for digital optical audio output

• USER I/O Port – Compatible with SNAC, MT32-Pi, and IEC (C64)

• Simultaneous HDMI + Analog Video/Audio Output

• Unique Status LED System with internal light isolation

• 3x User Buttons for quick access

• Fan Headers (3.3V / 5.5V) for high/low speed cooling

• High-Quality Build with modular, upgradable A/V design

• Compatible with legacy Analog I/O cases

Package Includes:

• A/V Module – Analog 24-bit Video DAC and Hi-Fi audio output

• Digital I/O Board v9.2

• ADC-in v1.3 – For audio input, cassette/tape support

• Optional Rear Panel – Compatible with official MiSTer or BlisSTer cases (Black or White)
