Active Y/C MikeS11 (Composite / S-Video)

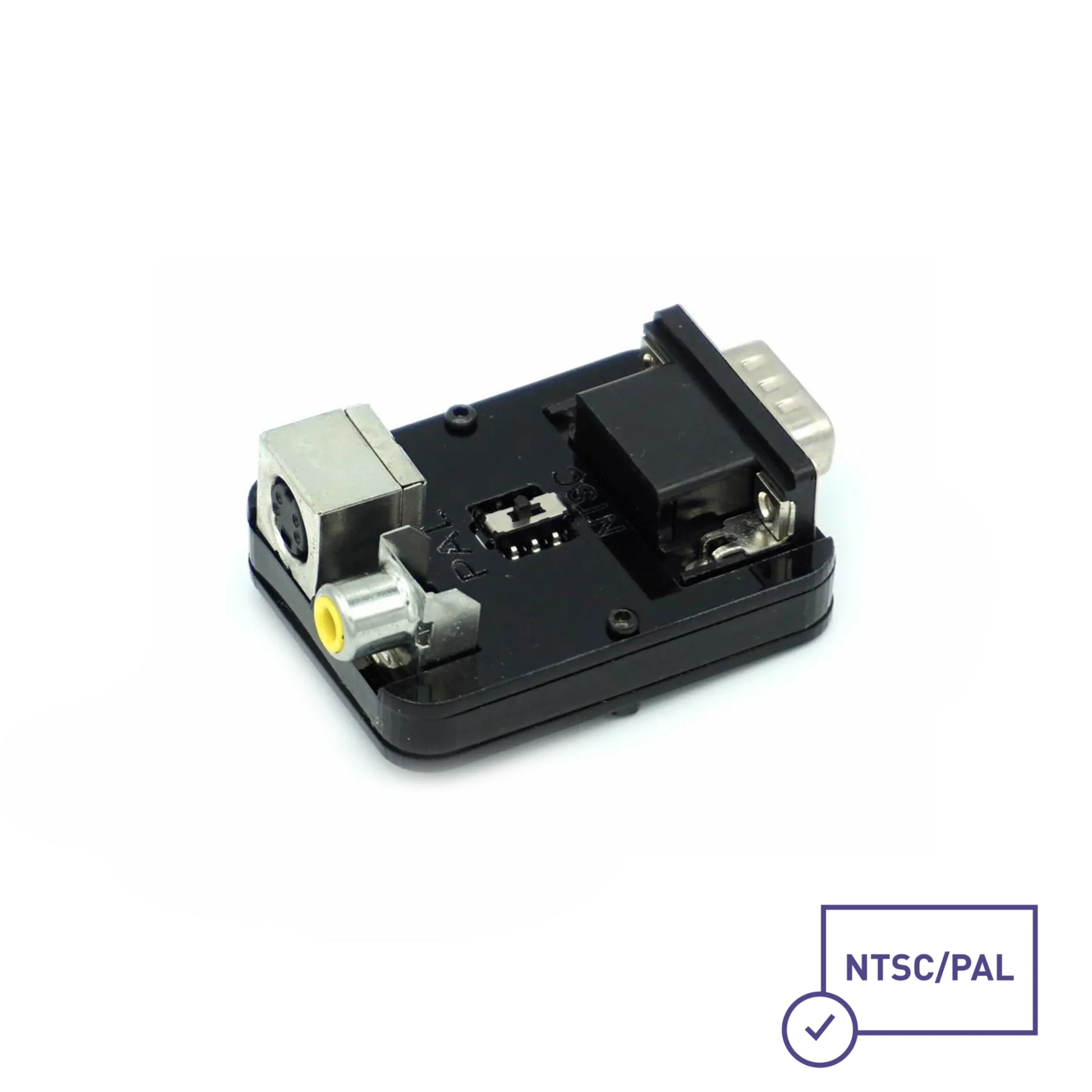

MikeS11 Y/C Active – Composite & S-Video Adapter for MiSTer FPGA

The MikeS11 Y/C Active is a high-quality video adapter that enables you to connect your MiSTer FPGA to a CRT television or any modern TV with analog inputs (Composite or S-Video).

•  Supports both PAL and NTSC video standards
•  Provides crisp analog output for an authentic retro experience
•  Perfect for setups requiring Composite or S-Video connectivity

Mister.ini Configuration:

• Composite_sync=1;

 MiSTer I/O Board Configuration:

• Enable 5V on VGA pin 9 using the jumper cap (available on the official MiSTer Analog I/O board)
• Disable Sync-on-Green (SoG)

 Active Adapter Outputs:

• Composite Video – RCA (Yellow connector)
• S-Video – Standard mini-DIN connector
• PAL / NTSC switch – Select between video standards depending on your display

 Note: This adapter is not compatible with Direct Video HDMI-to-VGA dongles.

Credits to MikeS11
